Solution advantages
All-Terrain Compatibility
Flexible and Highly Compatible
01
Long-term Corrosion Protection
Complete process control for durable performance.
02
Superior Structural Integrity
Proven durability through rigorous validation.
03
Smart Tracking

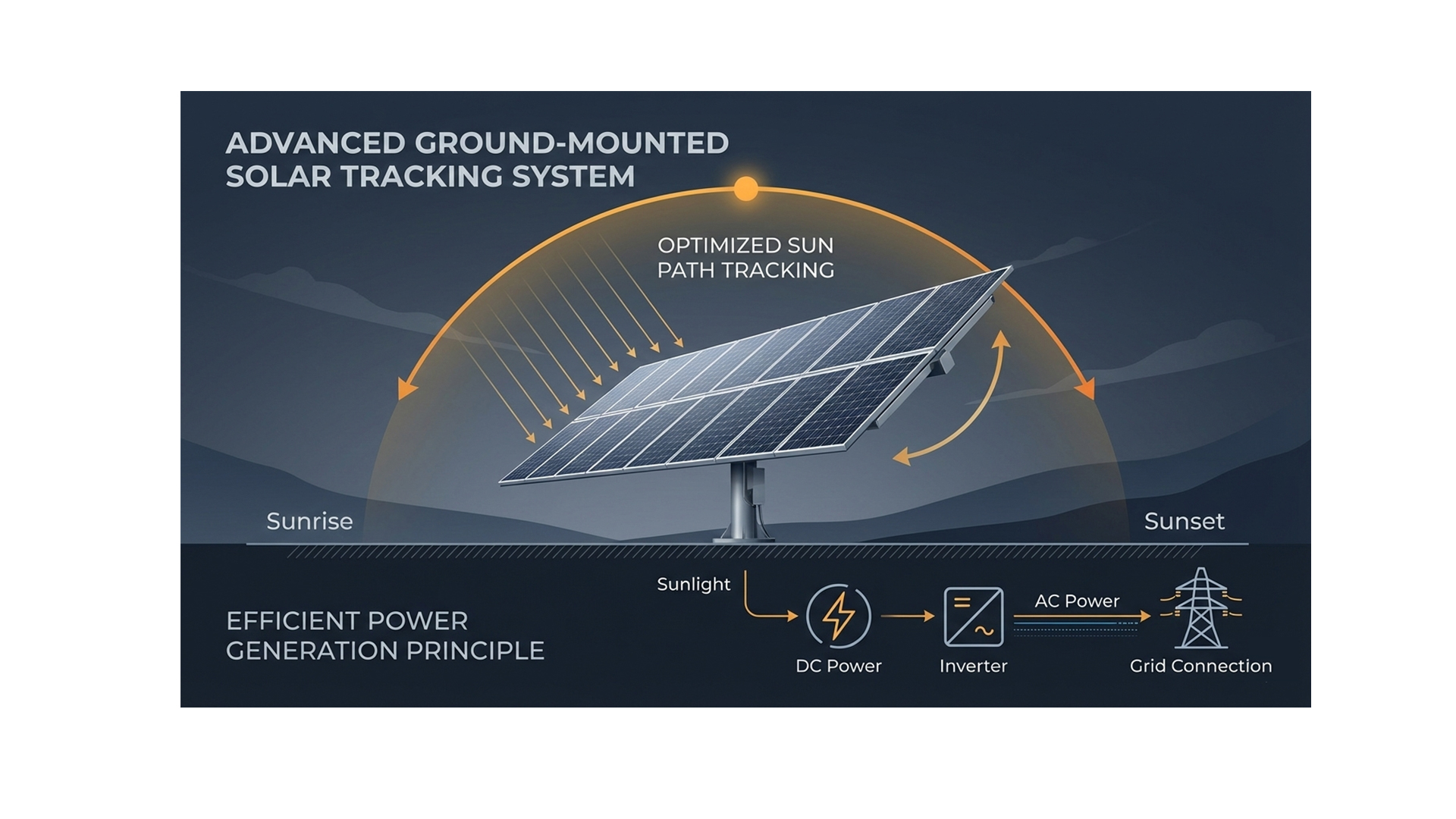

High-precision algorithms for optimal sun tracking.
04
Rapid Deployment
Engineered for quick installation with standardized, modular design.
05

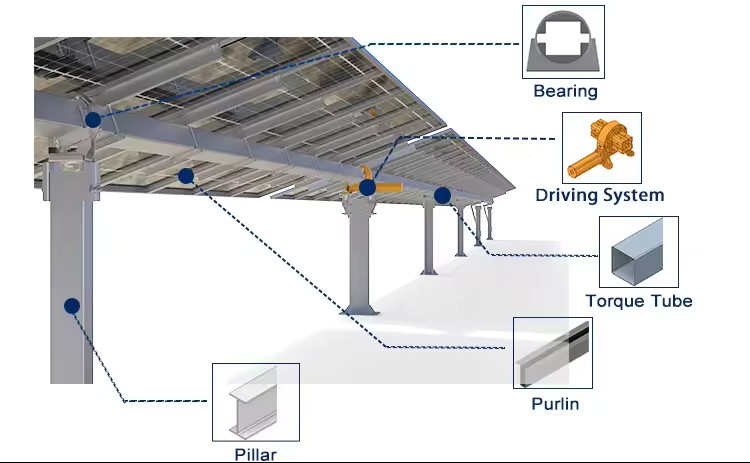

Ground-Mounted Solar Solutions
Solution Product Parameters
| Parameter | Fixed-Tilt Mounting | Single-Axis Tracker |
| Primary Material | High-strength steel, ZAM, Aluminum alloy | High-strength steel, Aluminum alloy + Azimuth drive unit |
| Design Wind Speed | 60 m/s (Customizable as required) | 45 m/s (Customizable as required) |
| Storm Protection | Structural wind-resistant design (No stow action) | Auto-stow to safe position at wind speeds ≥ 18 m/s |
| Corrosion Protection | Hot-dip galvanizing, ZAM, Anodizing | Hot-dip galvanizing, High-quality coating |
| Tilt/Tracking Range | Fixed tilt (Commonly 0°-45°, adjustable) | ±60° azimuth (Horizontal single-axis) |
| Foundation Compatibility | Ground screw, Concrete base, Ballast block | PHC / Driven pile / Cast-in-place pile |
| Control Method | None / Seasonal manual adjustment | Siemens PLC closed-loop feedback control |
| Pointing Accuracy | Not applicable | ≤0.3° |
| Ingress Protection (IP) | Not applicable (Mechanical structure) | ≥ IP65 (Control cabinet) |
| System Power Consumption | ~20 kWh/set/year | 0 kWh/day (Passive) |
| Service Life | ≥ 25 years (Structure) | ≥ 25 years (Structure), ≥ 10 years (Drive system) |
