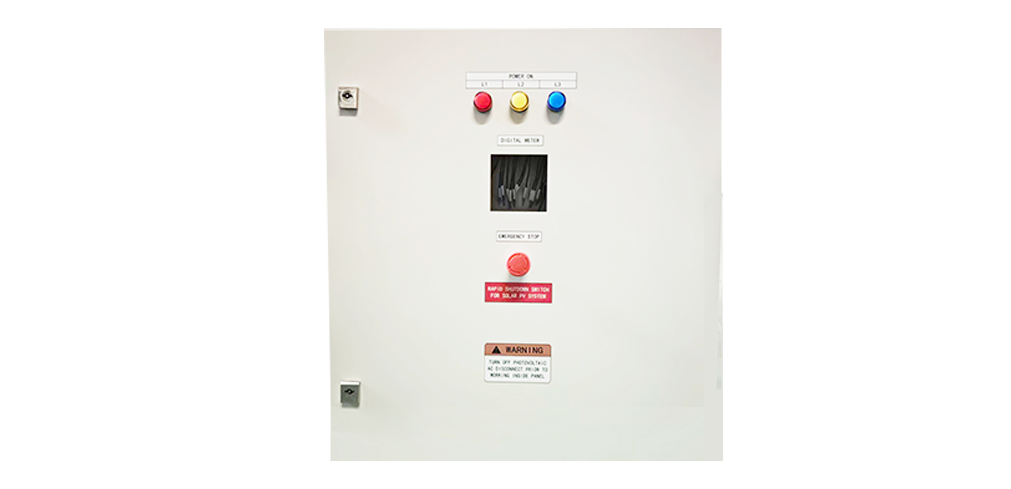

SMDB BOX
As the main output point of the photovoltaic power generation system, it serves as the power distribution device connecting the PV system and the grid. It features functions such as undervoltage trip detection, voltage presence closing detection, and surge protection.Real‑Time Monitoring Intelligent Management Stable Output.
Product Features
Multiple Product Specifications Available
The product supports a wide range of voltage and current ratings, and can be designed according to actual application scenarios.
Flexible Customization
The number of AC (inverter) input circuits can be configured as multiple inputs based on project requirements.
Safety
Equipped with various protection functions such as undervoltage trip detection, voltage presence closing detection, and surge arrester protection.
Capabilities
Capable of collecting voltage, current, frequency, and power data, and enabling local/remote data monitoring via the RS485 communication interface.
Parameter
Modelnumber | SMDB BOX |
Rated voltage | 230V/400V |
Rated current | 32 - 1250A options available |
Rated frequency | 50/60HZ |
Box material | Cold-rolled steel plate / Hot-dipgalvanized sheet |
Working temperature | -20°C~60°C |
Work humidity | < 90% free of condensation |
Altitude | 2000 meters (For distances above 2000 meters, the load should bereduced) |
Installation method | Hang on the wall |
| Box size | Customization |
